FireWolf @FireWolf_Log

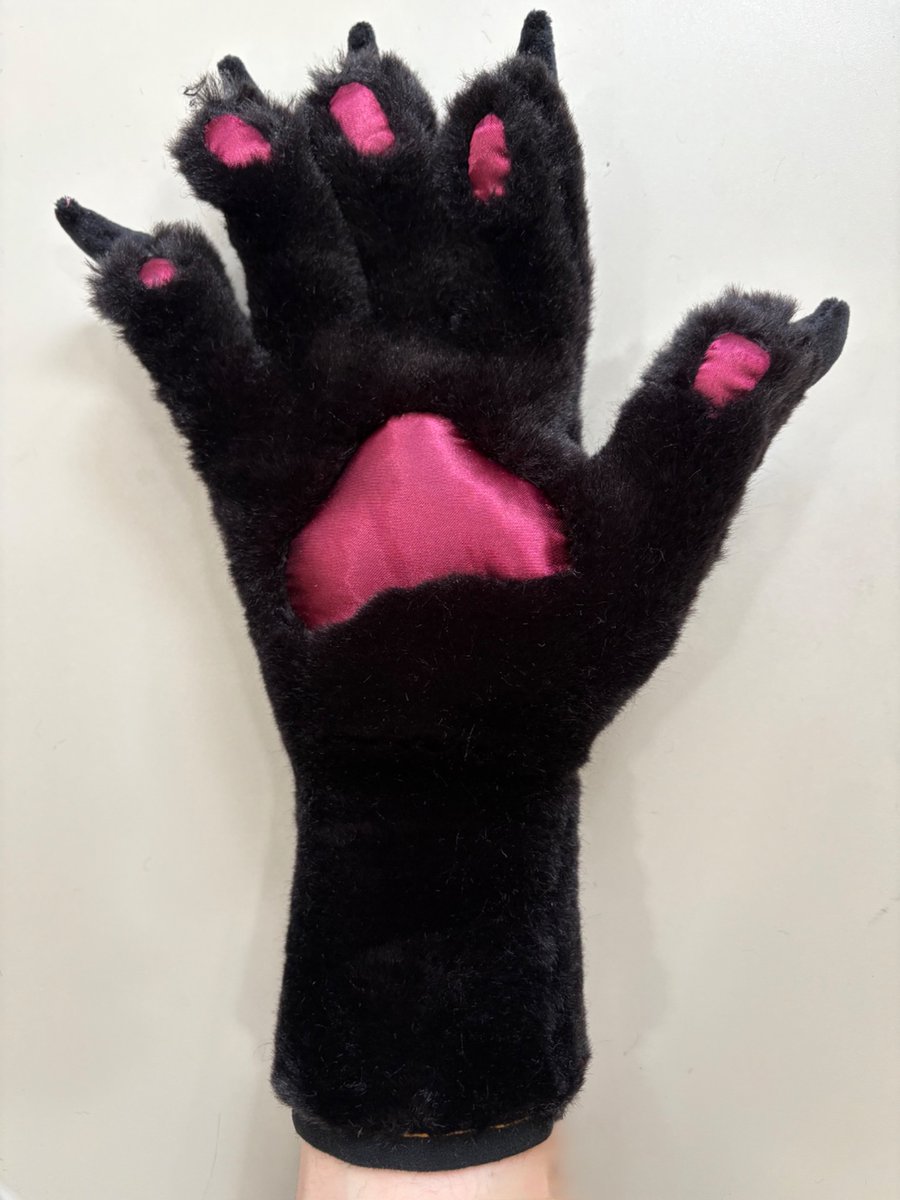

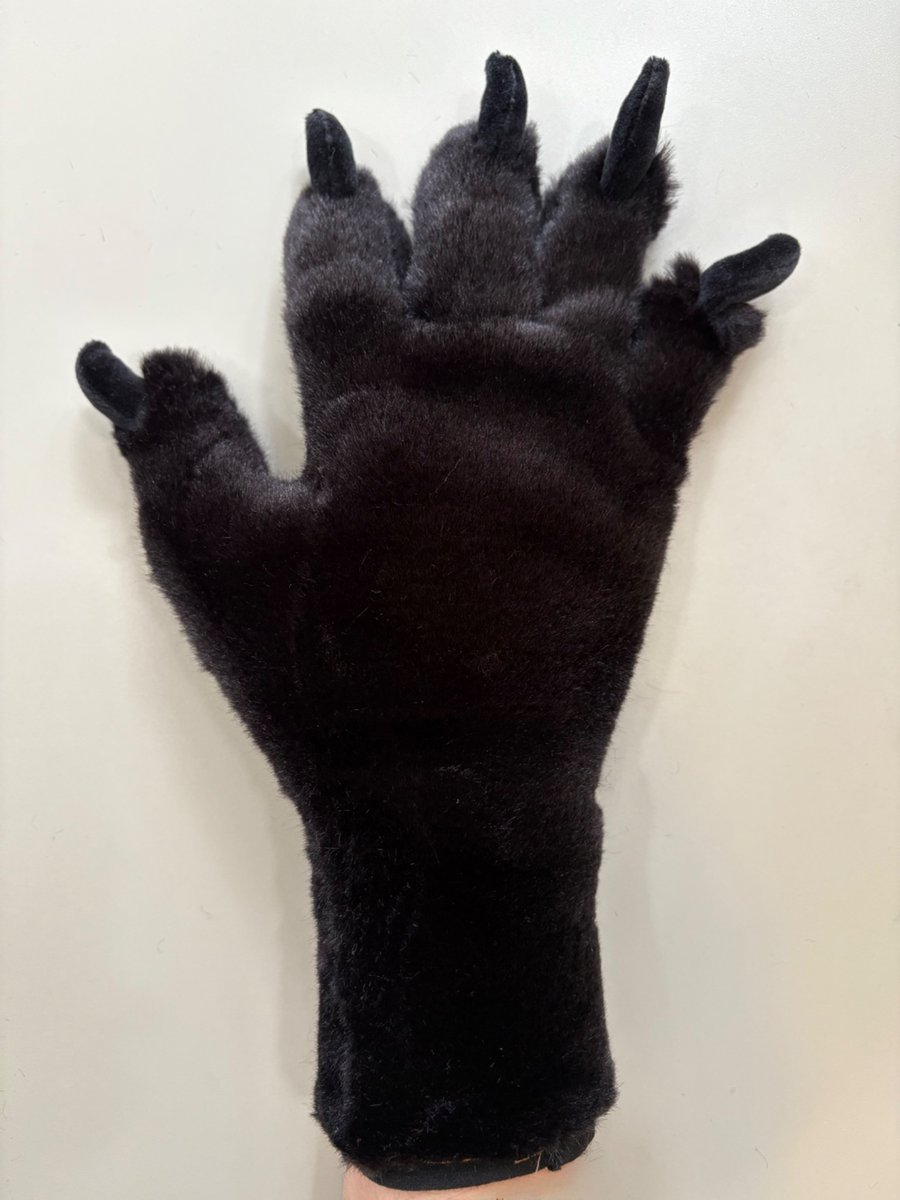

last few images are the implementation results. It’s better to use DTD after the wrist so it won’t fit as tightly. Available on my GitHub: github.com/FireWolf-Log/F…

0 0 0 6 0

View Details

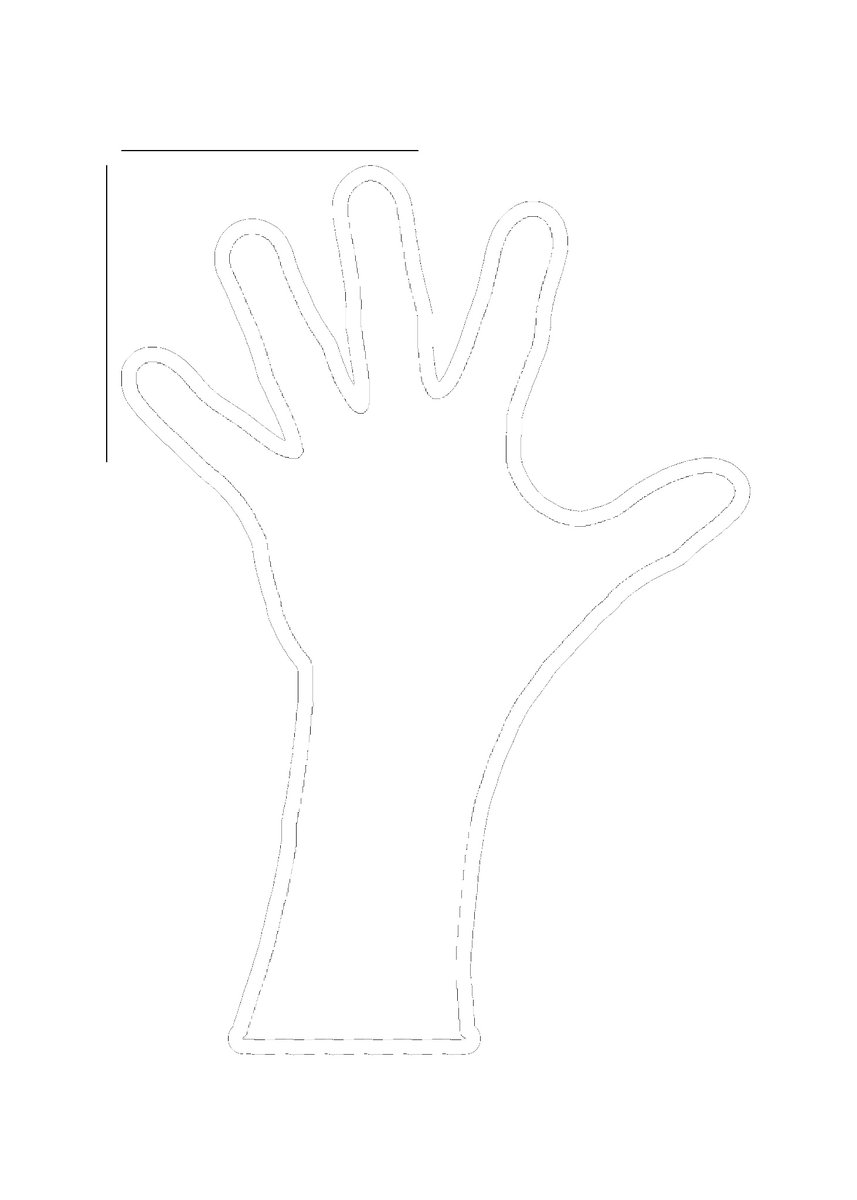

Sample: * Input: Simply take a photo with your hand flat on a known-size sheet of paper (e.g., A4; hand blurred in the example for privacy). * Output: A 1:1 printable pattern complete with 10 cm calibration lines.

1 0 0 5 0

View Details

FireWolf @FireWolf_Log

2 weeks ago

I wrote a CV program to generate a tight-fit fursuit paw pattern generator. (for four-way stretched fabric). A lifesaver for all-thumbs crafters who can't trace your hand.

1 0 0 30 0

View Details

FireWolf @FireWolf_Log

2 weeks ago

Bottom left (figure-eight stitch): Graphically equivalent to the top-left; only the node placement differ. Bottom right (new stretch stitch): A new stitch for securing an overcasting strip; its path can be solved by the program above.

0 0 0 3 0

View Details

FireWolf @FireWolf_Log

2 weeks ago

Stitch comparison Top left (stretchy overcasting): A stitch I designed previously. Top right (regular overcasting): The top edge limits horizontal stretch.

1 0 0 3 0

View Details

FireWolf @FireWolf_Log

2 weeks ago

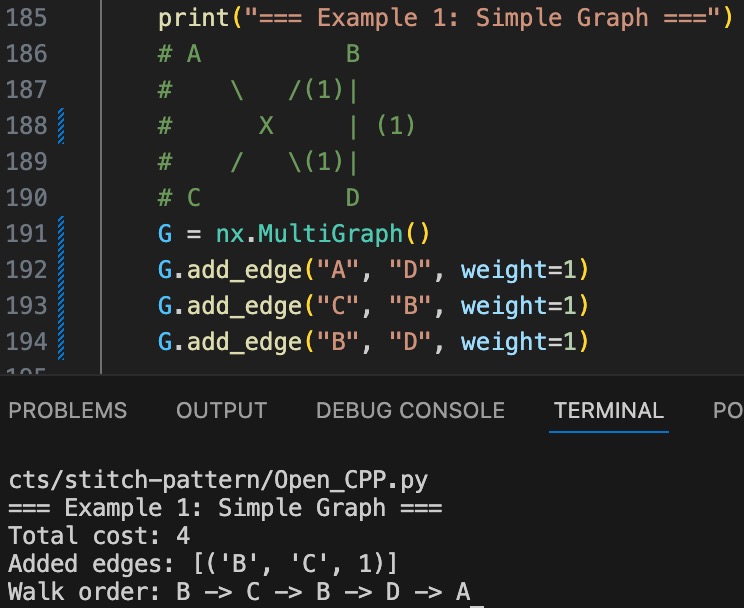

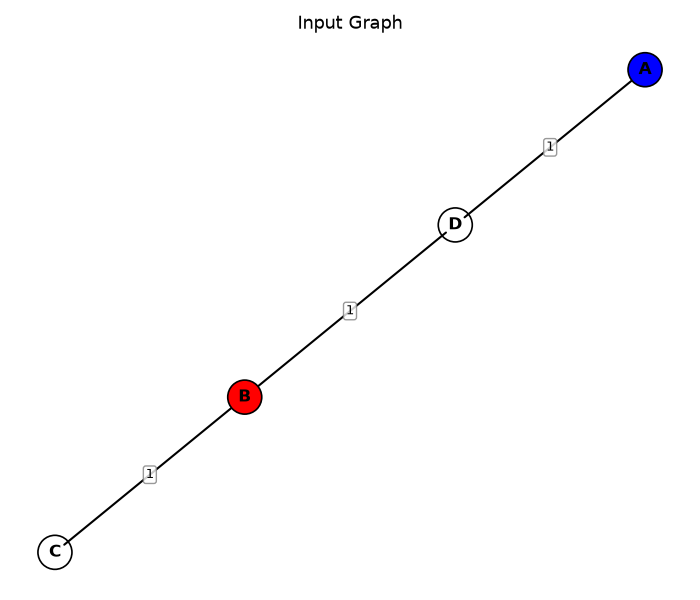

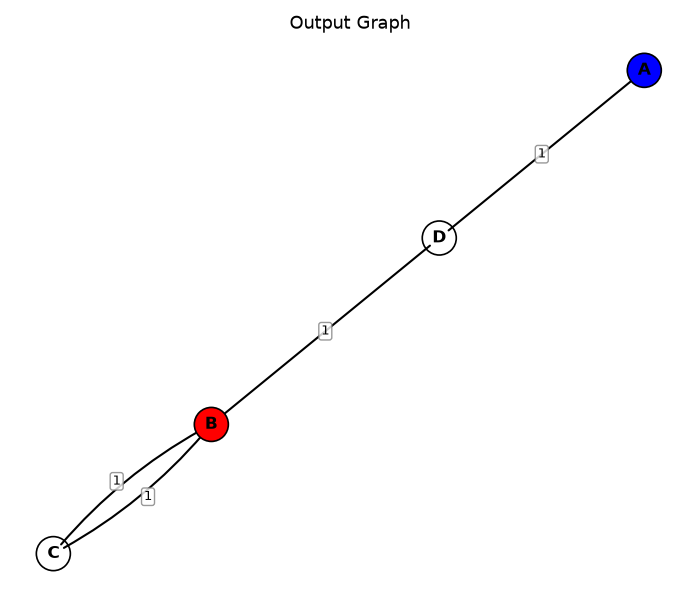

Assume a thread passes through a plane of a fabric as a node, then a stitch pattern as graph. Stitch properties: the end point is shift from the start, all edges are passed continuously with min repetition. This can be modeled as the open Chinese postman problem (Open CPP)

1 0 0 20 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

3. 2065 DIY Moldable Rubber For 3D prints (Homemade Sugru Oogoo) - YouTube: youtube.com/watch?v=6TnUYh… 4. How To Make "Proto-Putty" (Modified Oogoo) - YouTube: youtu.be/7fwytA5r2Mw

0 0 0 48 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

Oogoo = RVT silicon + corn starch. An cheap alternative to Sugru. 1. DIY casting silicone from caulk, pourable version: makezine.com/article/scienc… 2. How to Make Your Own Sugru Substitute : 15 Steps (with Pictures) - Instructables: instructables.com/How-To-Make-Yo…

1 1 2 408 2

View Details

FireWolf @FireWolf_Log

4 weeks ago

Body DTD making tutorial & tips: 1. DTD 要怎么打才最准确？貅太来教你！_哔哩哔哩_bilibili: bilibili.com/video/BV1Dg4y1…

0 0 0 21 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

2. AIST/HQL 3D Anthropometric Database 2003 — Definitions of Measurement: web.archive.org/web/2026010108… 3. AIST Human Body Dimensions Database 1991–92: web.archive.org/web/2024040703… 4. I-Ware Lab — Foot Measurement / Marker Dimensions: web.archive.org/web/2026010108…

0 0 0 14 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

Useful references for standardized body measurements, anthropometry, and garment/pattern-making: 1. ISO 7250-1:2017 — Basic human body measurements for technological design: definitions & landmarks: web.archive.org/web/2026010108…

1 0 0 20 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

Method As shown. Experimental Results Works. No data yet. Conclusion POC OK. Record it here for future research. References [1] Conventional overlock stitches.

0 0 0 11 0

View Details

FireWolf @FireWolf_Log

4 weeks ago

A Stretchable Overlock Stitch for Elastic Fabric Introduction Conventional overlock stitch stretch along the stitch direction. Our proposed method uses a “nodes + diagonal segments” geometric pattern to retain stretch.

1 0 0 16 0

View Details

FireWolf @FireWolf_Log

a month ago

Available to buy in Taiwan: 1. [MY YARD - FORMART Smart Vacuum Former - 訂購專區](myyardtech.com/zh/shop/) 2. [Mayku FormBox 桌上型真空成型機 3DPW祥貿科技](3dprow.com/products/mayku…)

0 0 0 27 0

View Details

FireWolf @FireWolf_Log

a month ago

Vacuum forming machine Available to rent in Taiwan: 1. [Fablab Taipei](fablabtaipei.org/class.html) 2. [一般及自造設備 - 行政資源 - 創生加速 - 中興新村地方創生育成村](zrsi.org/public/ad-reso…)
