@dl3jop @dereksgc I didn't replace it. I sewed it onto the original.

1 0 1 37 0

View Details

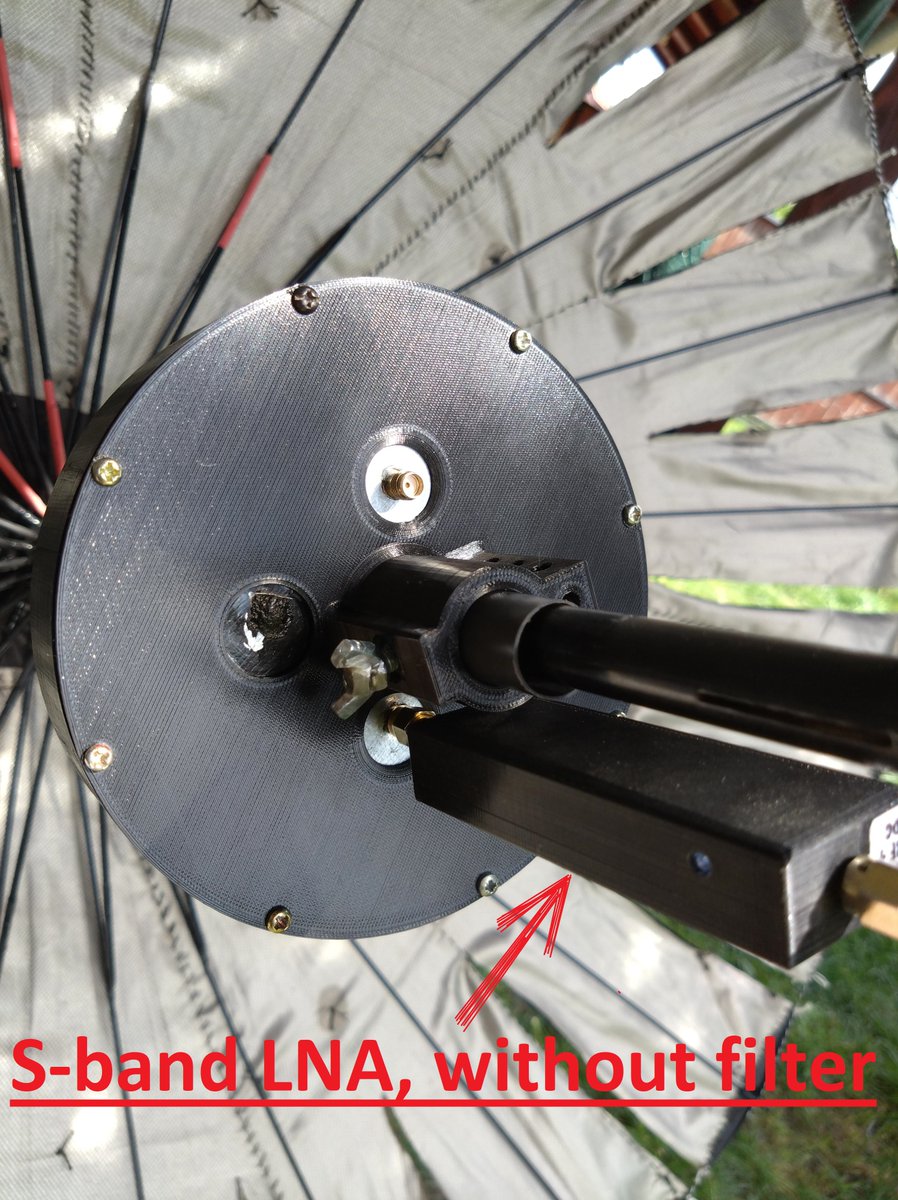

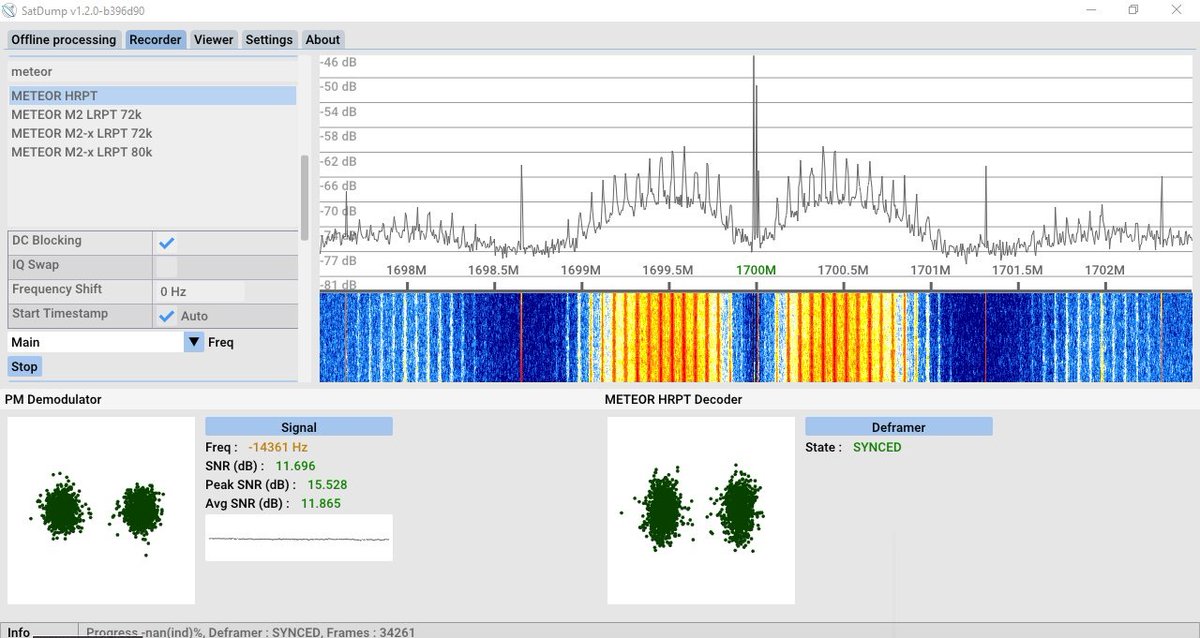

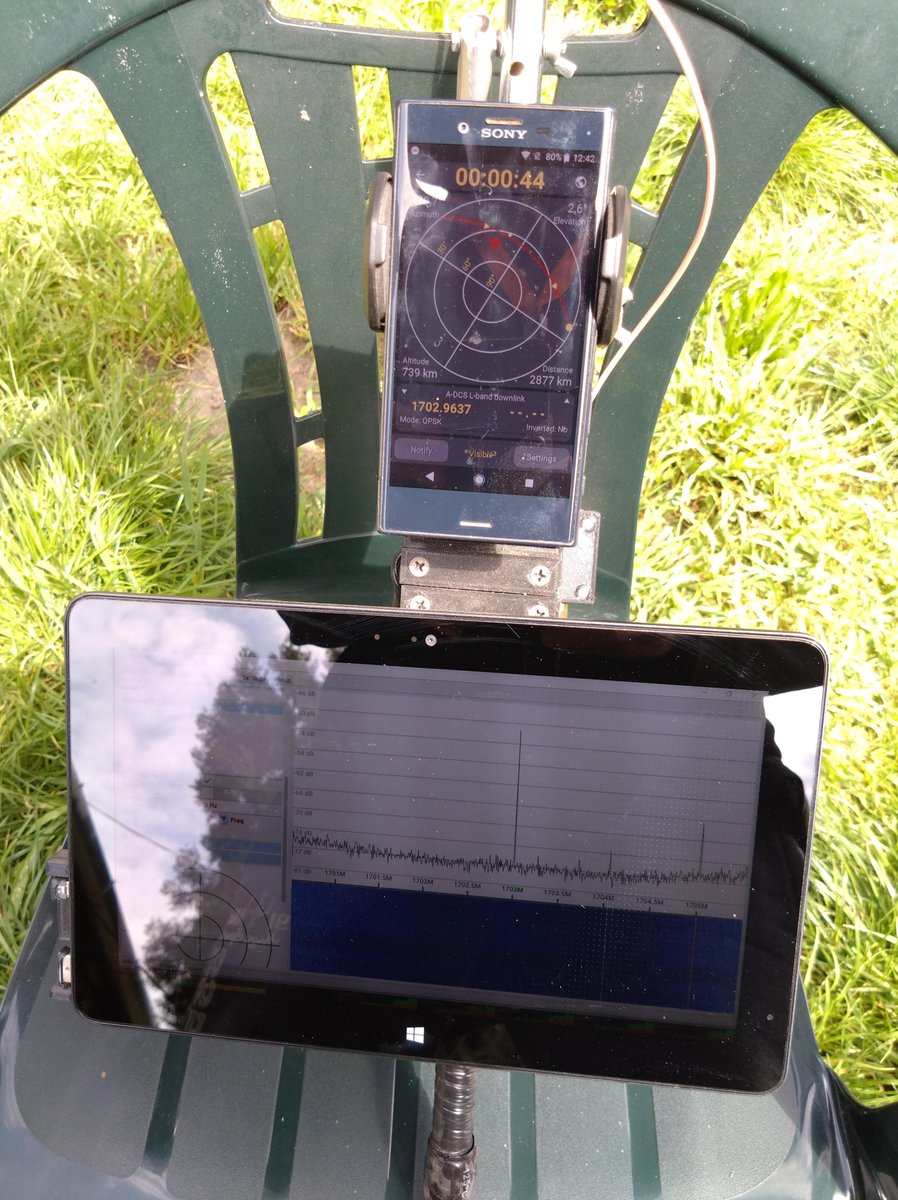

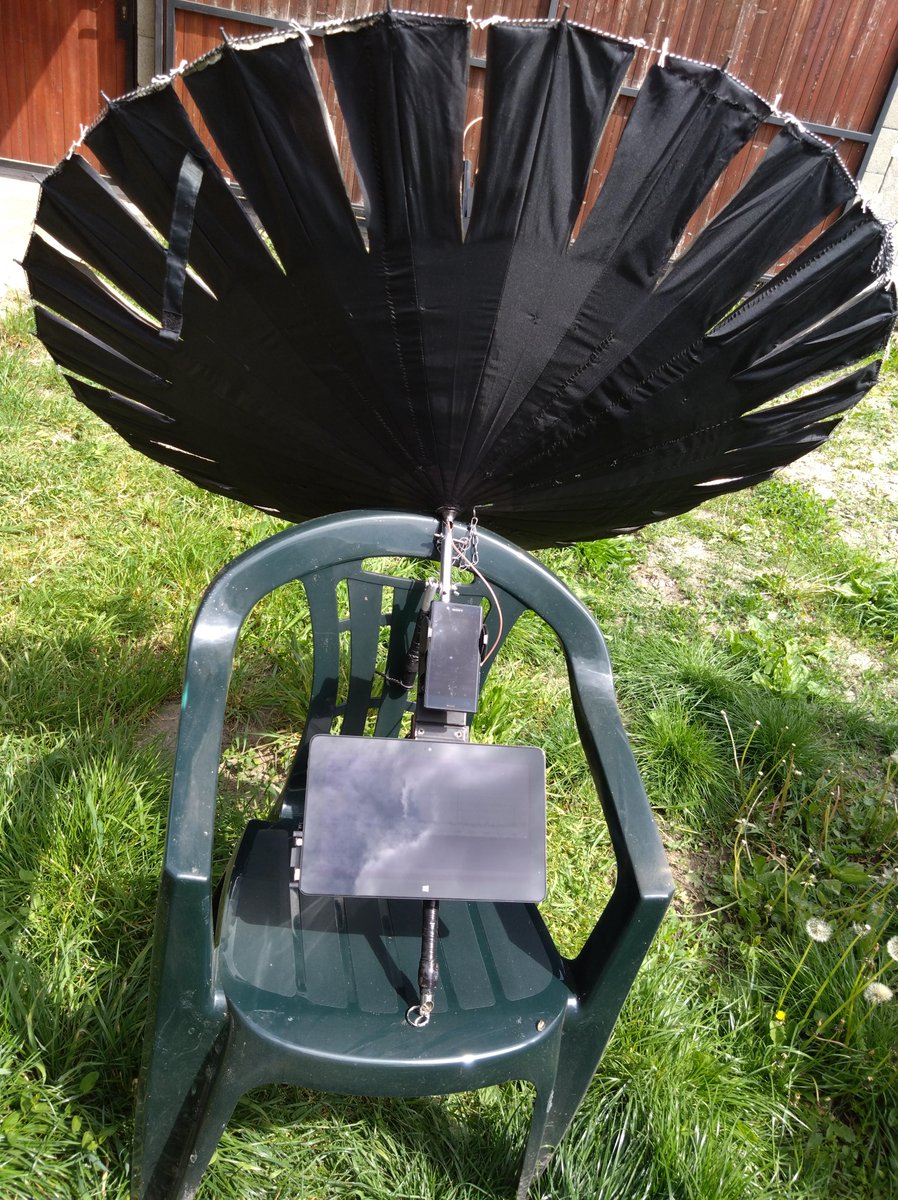

My fully portable L and S band handheld satellite tracker, assembled from modules (for HRPT satellites and more). The dish, is made from an umbrella, with a slight modification and can be closed, making it completely portable. @dereksgc

2 9 61 3K 14

View Details

waveterror @waveterror

3 years ago

NOAA 15_hrpt_S-band_2.2475 GHz - 2024-04-27_17-49 (SatDump)

0 0 3 88 0

View Details

waveterror @waveterror

3 years ago

NOAA HRPT_1.707 GHz (with my handheld satellite tracker) 2024-04-23_10-18.

0 0 3 85 0

View Details

waveterror @waveterror

3 years ago

Metop-B AHRPT (with my handheld satellite tracker) 2024-04-23_08-42.

0 0 2 73 0

View Details

waveterror @waveterror

3 years ago

@CoxCranio @dereksgc The number of helix threads is two and a half, for both helixes ... for prime focus dish.

0 0 0 9 0

View Details

waveterror @waveterror

3 years ago

@CoxCranio @dereksgc The two helixes are 1700Mhz and 2250Mhz. Online calculator... sgcderek.github.io/tools/helix-ca…

0 0 0 6 0

View Details

waveterror @waveterror

3 years ago

@CoxCranio @dereksgc I calculated the dimensions using an online calculator, but both helixes require manual tuning for the maximum result, both the coils and the joining points, so it is not necessary to give dimensions, because every single piece made will have a different size :)

0 0 0 30 0

View Details

waveterror @waveterror

3 years ago

@CoxCranio @dereksgc About the antenna head? x.com/waveterror/sta…

waveterror @waveterror

3 years ago

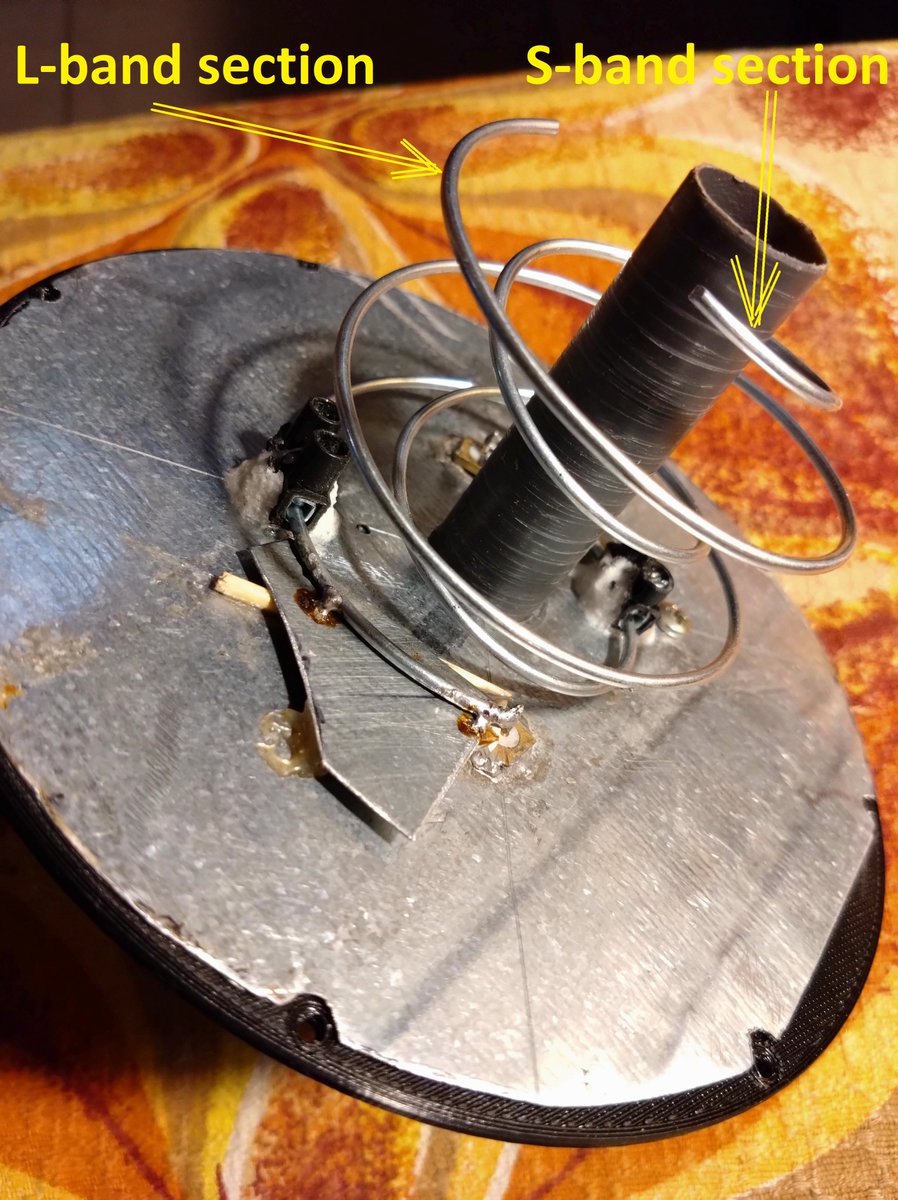

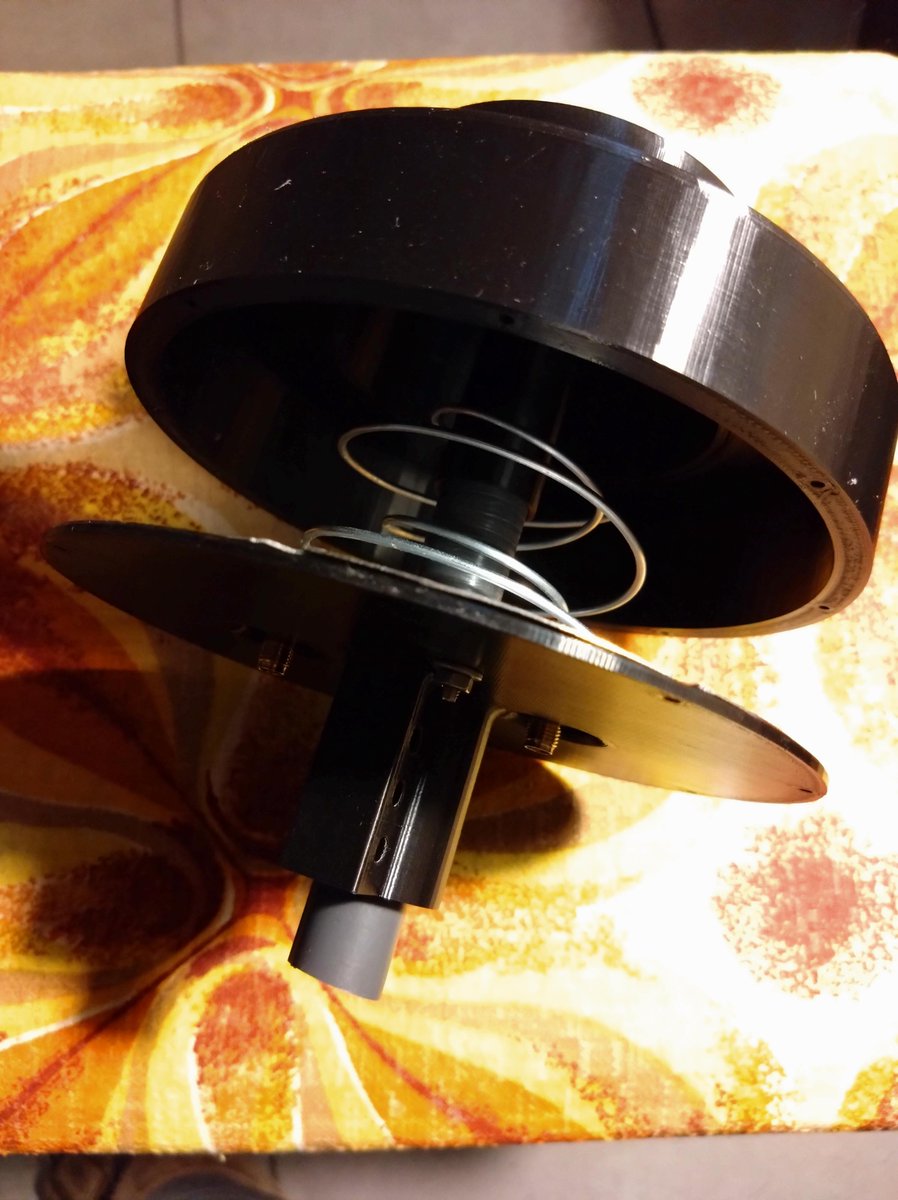

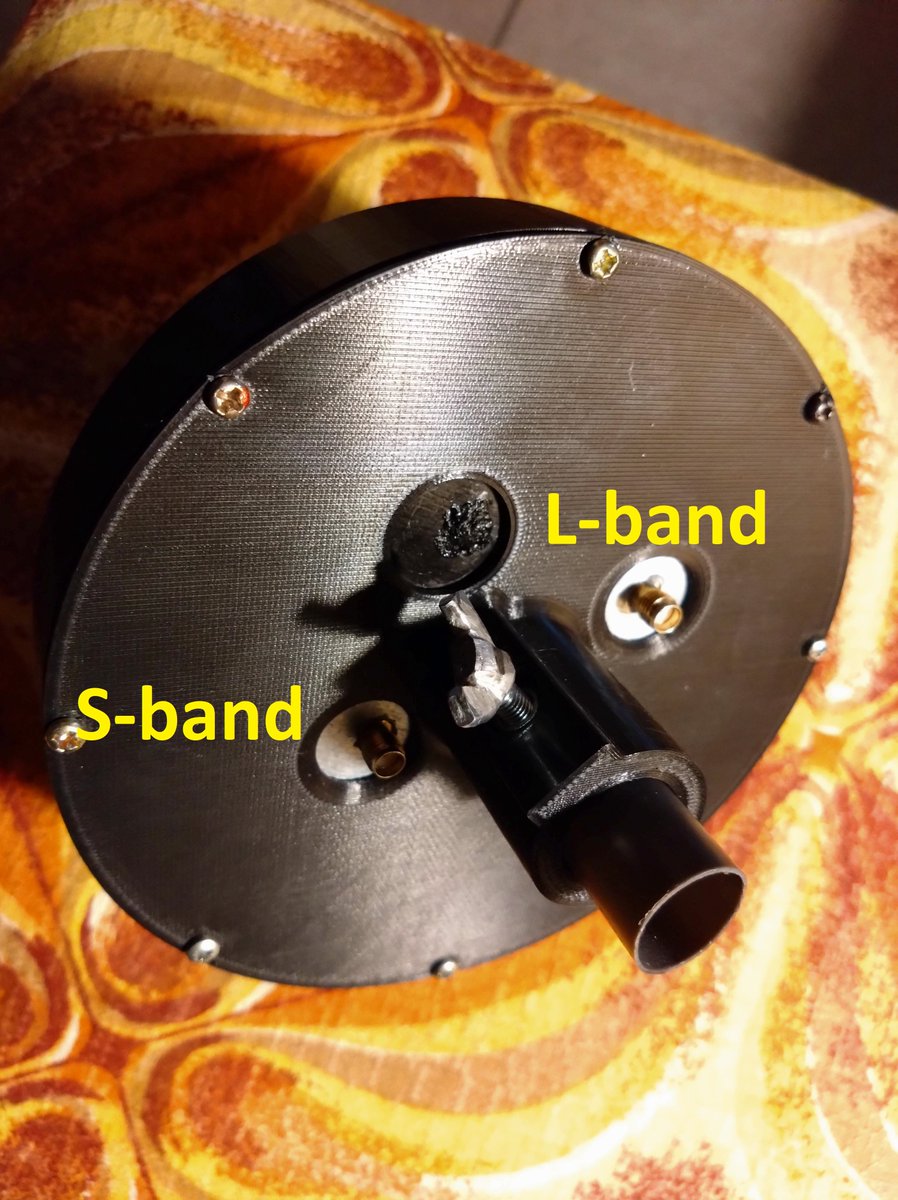

The antenna head is self-made, double-band L and S, with separate connection for the two bands, two-in-one helix. @dereksgc

1 0 7 267 2

0 0 0 135 1

View Details

waveterror @waveterror

3 years ago

@alpha_adhito @dereksgc They would interfere with each other if I tuned them separately. They are tuned at the same time, they align with each other. If, for example, I remove one of them, the other one goes out of tune. The two keep each other in balance.
